​​​​​Prireditve jadralna letala

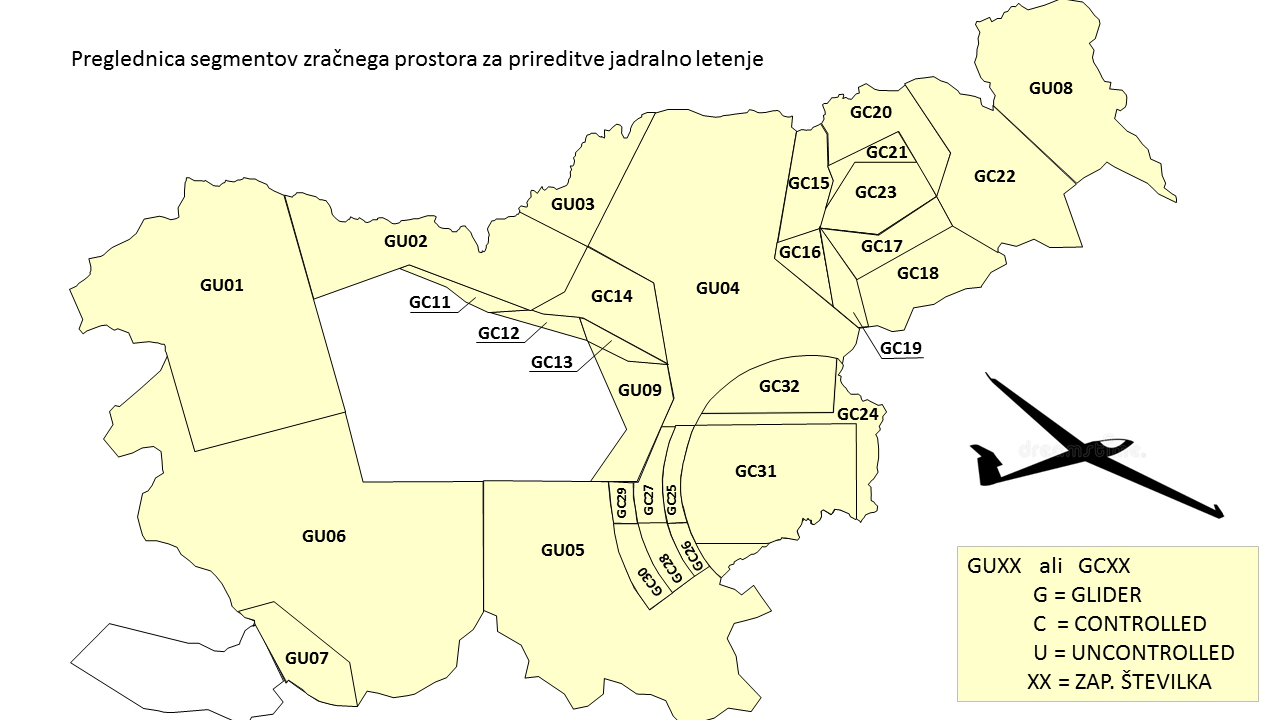

Tabela segmentov zarčnega prostora za prireditve jadralno letenje:

Oznaka zr. prostora	Ime	Spodnja meja​	Zgornja meja	Razred zr. prostora	Meje zračnega prostora	Povezava na prikaz
GU01	Triglav	GND	9500 FT MSL	G	461029N 0133958E ALONG FIR BDRY LJUBLJANA/MILANO ALONG FIR BDRY LJUBLJANA/WIEN 462916N 0140006E 461654N 0140505E 460335N 0141025E 455841N 0134442E 461029N 0133958E​	GU01 - TRIGLAV.kmz
GU02	Karavanke	GND	9500 FT MSL	G	462916N 0140006E ALONG FIR BDRY LJUBLJANA/WIEN 462720N 0144046E 462300N 0145215E 461745N 0144823E 461532N 0144219E 462055N 0142139E 461654N 0140505E 462916N 0140006E​	GU02 - KARAVANKE.kmz
GU03	Mežica	GND	9500 FT MSL	G	462720N 0144046E ALONG FIR BDRY LJUBLJANA/WIEN 463900N 0150408E 462300N 0145215E 462720N 0144046E​	GU03 - MEŽICA.kmz
GU04	Celje	GND	7500 FT MSL	G,E	463900N 0150408E ALONG FIR BDRY LJUBLJANA/WIEN 463643N 0152803E 462141N 0152445E 461323N 0153912E ALONG FIR BDRY LJUBLJANA/ZAGREB 460905N 0153640E 460127.8N 0151143.5E COUNTER CLOCKWISE ARC WITH RADIUS 15.5NM AND CENTRE OF ARC ON VOR/DME COK 460121.3N 0150458E 460454N 0150715E 460912N 0150610E 461837N 0150348E 462300N 0145215E 463900N 0150408E	GU04 - CELJE.kmz
GU05	Novo mesto	GND	7500 FT MSL	G,E	455452N 0143431E 455459.07N 0145610.85E COUNTER CLOCKWISE ARC WITH RADIUS 24.5 NM AND CENTRE OF ARC ON VOR/DME COK  453943.47N 0150254.11E 454500.5N 0151316E COUNTER CLOCKWISE ARC WITH RADIUS 15.5 NM AND CENTRE OF ARC ON VOR/DME COK 454332N 0151501E ALONG FIR BDRY LJUBLJANA/ZAGREB 454003N 0143431E 455452N 0143431E	GU05 - NOVO MESTO.kmz
GU06	Postojna	GND	7500 FT MSL	G,E	461026N 0133955E 455842N 0134442E 460335N 0141023E 455501N 0141349E 455452N 0143431E 454003N 0143431E 454003N 0143431E ALONG FIR BDRY LJUBLJANA/ZAGREB 452813N 0141215E (GEMKA) 453356N 0141015E (ILB) 454022N 0135810E 453908N 0135243E (EPOMI) ALONG FIR BDRY LJUBLJANA/MILANO 461026N 0133955E​	GU06 - POSTOJNA.kmz
GU07	Kozina	GND	7500 FT MSL	G,E	453908N 0135243E (EPOMI) 454022N 0135810E 453356N 0141015E (ILB) 452813N 0141215E (GEMKA) ALONG FIR BDRY LJUBLJANA/ZAGREB 453109N 0140005E 453756N 0135508E 453803N 0135433E ALONG FIR BDRY LJUBLJANA/MILANO 453908N 0135243E (EPOMI)​	GU07 - KOZINA.kmz
GU08	Murska sobota	GND	7500 FT MSL	G,E	COVERS THE TERRITORY OF THE REPUBLIC OF SLOVENIA EAST OF THE LINE: 463959N 0160210E 463057N 0161606E​	GU08 - MURSKA SOBOTA.kmz
GU09	Kum	GND	4500 FT MSL	G,E	461200N 0145213E 460932N 0145902E 460910N 0150614E 460454N 0150715E 455458N 0150052E 455500N 0145245E 460114N 0145858E 461200N 0145213E​	GU09 - KUM.kmz
GC11	Krvavec	1000 FT AGL	8000 FT MSL	C	462029N 0141951E 462055N 0142139E 461532N 0144219E 461505N 0143536E 461631N 0143118E 461818N 0142747E 462029N 0141951E​	GC11 - KRVAVEC.kmz
GC12	Tuhinj	1000 FT AGL	6000 FT MSL	C	​461505N 0143536E 461532N 0144219E 461501N 0144448E 461437N 0145035E 461200N 0145213E 461505N 0143536E​	GC12 - TUHINJ.kmz
GC13	Čemšeniška planina	4500 FT MSL	6000 FT MSL	C	461200N 0145213E 461437N 0145035E 461440N 0145139E 460910N 0150614E 460932N 0145902E 461200N 0145213E​	GC13 - ČEMŠENIŠKA PLANINA.kmz
GC14	Menina	5500 FT MSL	6000 FT MSL	C	461836N 0150346E 462255N 0145212E 461741N 0144823E 461532N 0144219E 461501N 0144448E 461437N 0145035E 461440N 0145139E 460910N 0150614E 461836N 0150346E​	GC14 - MENINA.kmz
GC15	Areh	100​0 FT AGL	7500 FT MSL	D	463643N 0152803E 463646N 0153108E 463801N 0153233E 463639N 0153337E 463239N 0153351E 463058N 0153446E 462524N 0153218E 462336N 0152510E 463643N 0152803E​	GC15 - AREH.kmz
GC16	Oplotnica	3500 FT MSL​	6000 FT ​MSL	E,D	462336N 0152510E 462524N 0153218E 461557N 0153445E 462141N 0152445E 462336N 0152510E​	​GC16 - OPLOTNICA.kmz
GC17	Pragersko	GND	6000 FT MSL	D	462524N 0153218E 462432N 0154223E 462905N 0155234E 462553N 0155510E 461820N 0153916E 462524N 0153218E​	​GC17 - PRAGERSKO.kmz​
GC18	Podlehnik	2500 FT MSL	6000 FT MSL	E	461820N 0153916E 462553N 0155510E 462206N 0160408E ALONG FIR BDRY LJUBLJANA/ZAGREB 461339N 0154215E 461820N 0153916E​	GC18 - PODLEHNIK.kmz
GC19	Boč	3500 FT MSL	6000 FT MSL	D	462524N 0153218E 461820N 0153916E 461339N 0154215E ALONG FIR BDRY LJUBLJANA/ZAGREB 461323N 0153912E 461557N 0153445E 462524N 0153218E​	​GC19 - BOČ.kmz
GC20	Šentilj	3500 FT MSL​	7500 FT MSL	D	463801N 0153233E ALONG FIR BDRY LJUBLJANA/WIEN 464227N 0154707E 463407N 0155451E 462905N 0155234E 463312N 0154912E 463748N 0154439E 463239N 0153351E 463639N 0153337E 463801N 0153233E​	GC20 - ŠENTILJ.kmz
GC21	Maribor	​GND	7500 FT MSL	D	463239N 0153351E 463748N 0154439E 463312N 0154912E 463312N 0153829E 462728N 0153312E 463058N 0153446E 463239N 0153351E​	GC21 - MARIBOR.kmz​​
GC22	Ptuj	3500 FT MSL	7500 FT MSL	D	464227N 0154707E ALONG FIR BDRY LJUBLJANA/WIEN 463959N 0160210E 463057N 0161606E ALONG FIR BDRY LJUBLJANA/ZAGREB 462206N 0160408E 462553N 0155510E 462905N 0155234E 463407N 0155451E 464227N 0154707E​	GC22 - PTUJ.kmz
​GC23	Hoče​	​GND	​7500 ft AMSL	​D	​463312N 0153829E 463312N 0154912E 462905N 0155234E 462432N 0154223E 462524N 0153218E 462728N 0153312E 463312N 0153829E​	​GC23 - HOČE.kmz
​​GC24	TMA Cerklje 1​	​1000 FT AGL	​7500 ft MSL​	​D	454332N 0151501E - ALONG FIR BDRY LJUBLJANA / ZAGREB - 460905N 0153640E -​ COUNTER CLOCKWISE ARC WITH RADIUS 15.5 NM AND CENTRE OF ARC ON VOR/DME COK - 454332N 0151501E	​GC24 - TMA CERKLJE 1.kmz
​GC25	​TMA Cerklje 2	​4500 ft AMSL	​7500 ft MSL​	​D	460123.21N 0150653.65E 460127.8N 0151143.5E Counter Clockwise Arc with radius 15.5 NM and centre of Arc on VOR/DME COK 455006N 0150948.8E 455002.4N 0150525.3E Clockwise Arc with radius 18.5 NM and centre of Arc on VOR/DME COK 460123.21N 0150653.65E​​	​GC25 - TMA CERKLJE 2.kmz
​GC26	​TMA Cerklje 3	​4500 ft AMSL	​7500 ft MSL​	​D	​455006N 0150948.8E 455002.4N 0150525.3E Counter Clockwise Arc with radius 18.5 NM and centre of Arc on VOR/DME COK 454315N 0150948.7E 454500.5N 0151316E Clockwise Arc with radius 15.5 NM and centre of Arc on VOR/DME COK 455006N 0150948.8E	​GC26 - TMA CERKLJE 3.kmz
​GC27	​TMA Cerklje 4	​​5500 ft AMSL	​7500 ft MSL​	​D	​460123.2164N 0150653.6493E 460121.3N 0150458E 455457.9960N 0150051.9840E 455458.1N 0150030.1E Counter Clockwise Arc with radius 21.5 NM and centre of Arc on VOR/DME COk 454958.23N 0150102.5E 455002.4N 0150525.3E Clockwise Arc with radius 18.5 NM and centre of Arc on VOR/DME COK 460123.2164N 0150653.6493E	​GC27 - TMA CERKLJE 4.kmz
​GC28	​TMA Cerklje 5	​​5500 ft AMSL	​7500 ft MSL​	​D	​455002.4N 0150525.3E 454958.23N 0150102.5E Counter Clockwise Arc with radius 21.5 NM and centre of Arc on VOR/DME COK 454129.32N 0150621.32E 454315N 0150948.7E Clockwise Arc with radius 18.5 NM and centre of Arc on VOR/DME COK 455002.4N 0150525.3E	​GC28 - TMA CERKLJE 5.kmz
​GC29	​TMA Cerklje 6	​​6500 ft AMSL	​7500 ft MSL​	​D	​455458.1N 0150030.1E 455459.07N 0145610.85E Counter Clockwise Arc with radius 24.5 NM and centre of Arc on VOR/DME COK 454953.98N 0145641.07E 454958.23N 0150102.5E Clockwise Arc with radius 21.5 NM and centre of Arc on VOR/DME COK 455458.1N 0150030.1E	​GC29 - TMA CERKLJE 6.kmz
​GC30	​TMA Cerklje 7	​​6500 ft AMSL	​7500 ft MSL​	​D	​454958.23N 0150102.5E 454953.98N 0145641.08E Counter Clockwise Arc with radius 24.5 NM and centre of Arc on VOR/DME COK 453943.47N 0150254.11E 454129.32N 0150621.32E Clockwise Arc with radius 21.5 NM and centre of Arc on VOR/DME COK 454958.23N 0150102.5E	​GC30 - TMA CERKLJE 7.kmz
​GC31	​CTR Cerklje	​GND	​3100 ft MSL​	​D	​455002.00N 0153855.00E 460148.74N 0153828.81E 460127.80N 0151143.50E COUNTER CLOCKWISE ARC WITH RADIUS 15.5 NM AND CENTRE OF ARC ON VOR/DME COK 454721.94N 0151114.10E 454720.00N 0152416.00E ALONG FIR BDRY LJUBLJANA/ZAGREB 455002.00N 0153855.00E​​	​GC31 - CTR CERKLJE.kmz

Prikaz vseh segmentov hkrati: Vsi segm​enti zračnega prostora za prireditve jadralno letenje hkrati.kmz​​

​​
